High Efficient Vertical Woodworking Band Saw With Log Carriage

FOB Reference Price:Get Latest Price
$41,800.00 - $44,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Band Saw
Use:
Woodworking
Style:
Vertical
Place of Origin:
Zhejiang, China
Brand Name:
NanYang
Model Number:
MJ3212B+MJ329-4DE-F
Usage:
sawing large wood
Voltage:
according to clients request
Dimension(L*W*H):
8900*150*1.25 mm
Certification:
ISO9001 certificate
Name:
wood planks cutting machine
Saw wheel diameter:
1270mm
Saw wheel width:
160mm
Max.cutting height:
1300mm
Rotary speed of saw wheel:
630r/min
Max. size of saw blade:
8900*150*1.25 mm
Weight:
14000kg, 14000kg
Size of saw blade:
8900*150*1.25 mm
Dimension of band saw:
5800*2600*2600mm
Dimension of carriage:
1720*1650*3520mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Power(W):
85.15kw
Supply Ability
Supply Ability:
30 Set/Sets per Month wood planks cutting machine
Packaging & Delivery
Packaging Details
packages:wood pallet or as your request
Port
shanghai
Lead Time :
Delivery shall be 30 days after signing contract.
click


p

1. Descriptions of wood planks cutting machine

Product Function:

1,Automatic feeding and drawing back; Automatic hook

2,PLC control system; Touch screen display

3,Wire rope traction; Frequency changer control

4,Automatic rotating device ( Hydraulic control)

   Automatic feeding device( Hydraulic control)

   Automatic conveyor line( Electric control)

5,Automatic moving

Technical Parameters:

Name

Specification

Saw wheel diameter

φ1270mm

Saw wheel width

160mm

 Size of saw blade(L×W×H)

8900×150×1.25 mm

Saw wheel rotate speed

630 r/min

Max. cutting log

1300 mm

Stroke of timber blocking pile (Distance from saw blade)

25~1450mm

Power of hydraulic system in rolling

5.5kw

Working pressure of hydraulic system in rolling

7Mpa

Power of hydraulic system in feeding

2.2kw

Working pressure of hydraulic system in feeding

5Mpa

Hydraulic oil label of hydraulic system

46#

Forward & backward speed of carriage (Max.)

92m/min

Length of track

21000mm

Quantity of timber blocking pile

4

Length of carriage frame

5700mm

Total power

85.15kw

Main power of band saw

55kw

Dimension of band saw

5800×2600×2600mm

Dimension of carriage

1720*1650*3520mm

Total weight

14000kg

Please note : We offer customized  specifications

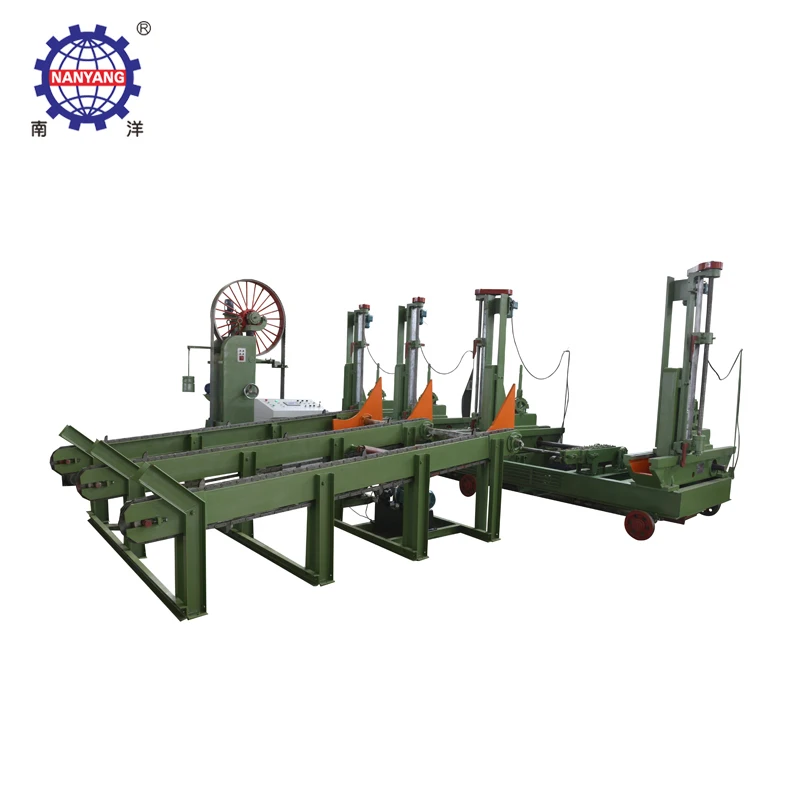

2. Pictures Of wood planks cutting machine





More products

more-product-













1. All the prices are FOB Shanghai. Include packing charge;

2. Payment Terms:  T/T 30% as deposit after signing contract, and 70% before shipment;

3. Delivery Time:  Within 30 days after receiving the deposit.
